Watson McDaniel 3" 150# Steam Separator

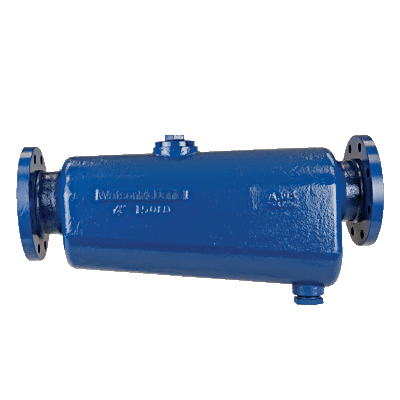

Watson McDaniel 3" 150# Steam Separator 3" Watson McDaniel Model WCIS3 Steam Separator

The WCIS3 separator is a ductile iron baffle type separator used for the removal of entrained moisture/liquids in steam, compressed air or gas systems. Moisture Separators are used to improve the quality of steam gases or compressed air either within a distribution system or on the supply inlet to PRV's, Control Valves, or Steam Turbines. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a steam trap or drainer. This allows clean, dry vapor to exit at the outlet of the separator. Maintenance Free for Long Service Life.

PROUDLY MADE IN THE USA FROM US CASTINGS

    * Ductile Iron One Piece Body
    * 150# Flanged Ends
    * Removes 99% of all particles ≥ 10 microns in size
    * Optimal gravity discharge
    * Rated 188 PSIG @ 428°F.
    * Compare to Sarco S3 0231992
    * SKU: WCIS3-19-F150

Specification Sheet

In stock
Price: $1,525.09
